技术特点和优势

High Performance Filter Screen

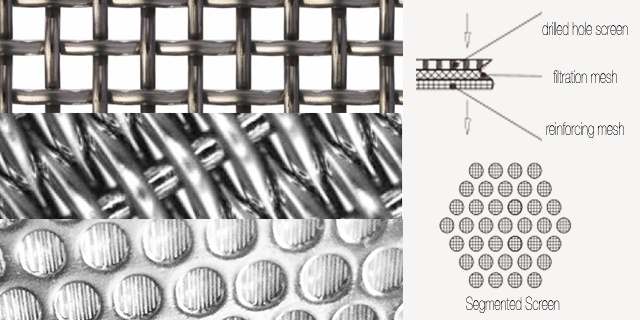

The filter screen is laminated with three layers from inside to outside, drilled hole screen, filtration mesh, reinforcing mesh. The drilled hole screen segments the entire mesh into thousands of small round mesh discs. UFT filter has three kinds of high performance metal filter media to meet different filtration demands.

Efficient and Uniform Screen Cleaning Perfomance
The suction nozzles scan and back-flush the screen. Only a very small piece of filter area is being back-flushed during cleaning. So the screen can be completely cleaned by the high velocity reverse flow and 100% surface area can be efficiently and uniformly cleaned. The outlet pressure fluctuation is very low during back-flushing.

No Bypass Back-flushing
The spring-loaded suction nozzle tightly contacts the drilled hole screen. The screen area covered by suction nozzle is divided into back-flushed area and isolated area. There is no gap between the isolated area and the suction nozzle, which eliminates the bypass flow when back-flushing and greatly improves the back-flushing intensity. It it very help to clean the screen completely.

Minimum Waste Liquid Purging
The debris and particles are blocked inside the holes and enter into the suction nozzle after passing a very short distance between the nozzle and drilled hole screen. The purged waste liquid can be minimized because of this kind of sealed back-flushing. The UFT filter can be used for the valuable liquid such as polymer, resin, adhesive, latex, viscose, etc.

Lowest Feed Flowrate Requirement
UFT filter is the automatic back-flushing filter requiring the lowest feed flowrate because of the scanning back-flushing with no bypass. It greatly simplifies the automatic filtration process system design. The small batch production now can use the simple self-cleaning filter back-flushed with internal filtrate.

Easy for Manual Maintenance
UFT filter is designed to be the easiest automatic back-flushing filter for viscous liquid. It is almost as convenient as the bag filter operation. Open the quick-open filter cover, lift the cover with the lifting device, pull out the back-flushing header and then pull out the filter screen. It only requires one operator to complete the maintenace working. If the filter requires manual screen cleaning after running for period in some service conditions, UFT filter's easy maintenance design saves a lot of operation time and labor cost.
